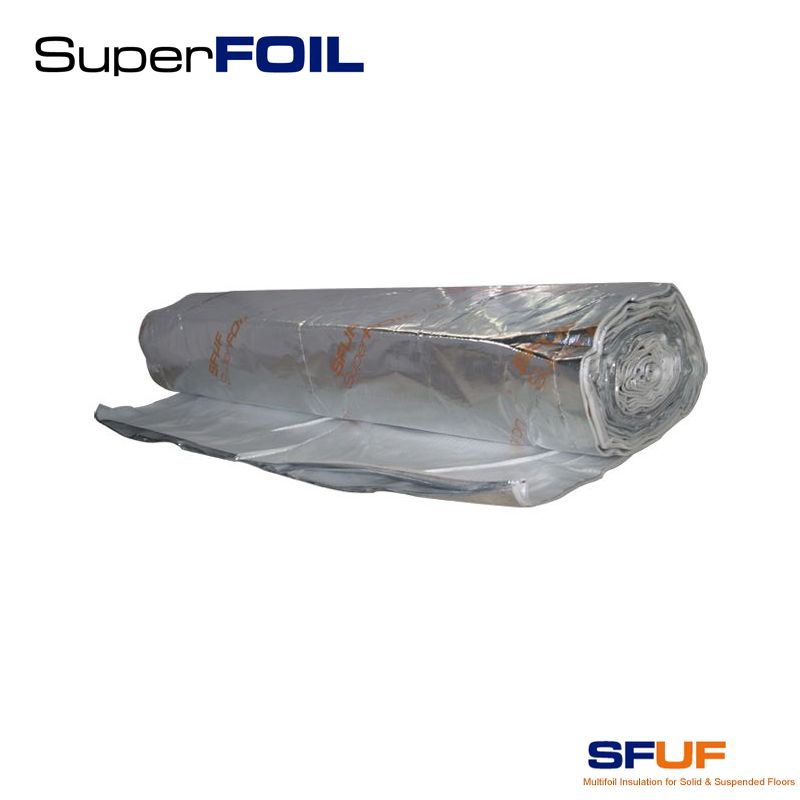

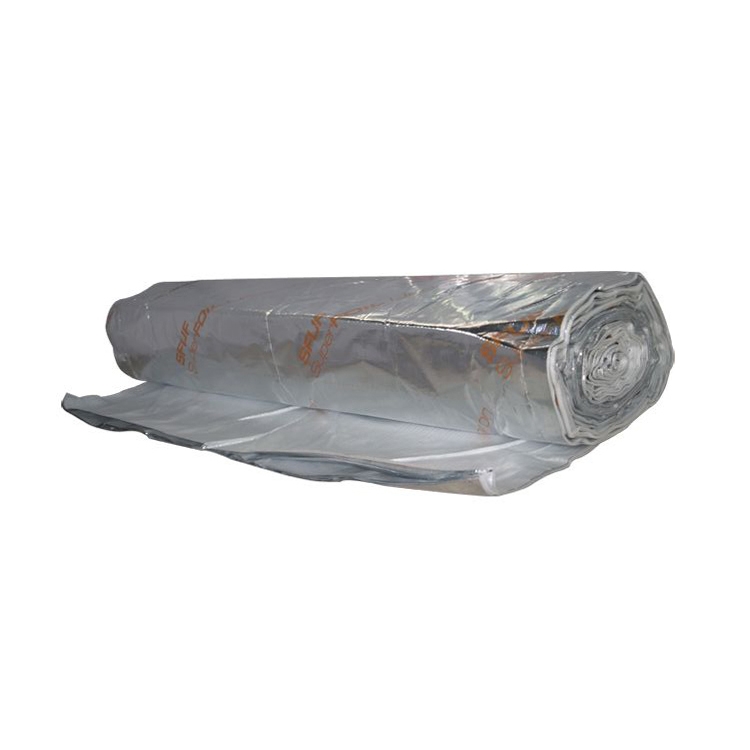

Underfloor Foil Insulation SFUF by SuperFOIL - 1.5m x 12.5m Roll

Name: Underfloor Foil Insulation SFUF by SuperFOIL - 1.5m x 12.5m Roll
Brand: SuperFOIL
SKU: SFUF-18.75
Availability: Discontinued

Code:

SFUF-18.75

Brand:

SuperFOIL

This item is out of stock and not available to purchase.

View alternative products

View full product details

View questions about this product

Create a wishlist

Tom Gallagher

Description

SFUF can be used in floors, walls, roofs and any place that requires slim high performance insulation. SFUF can also be used under screeded & laminate floors as well as over or under suspended floors. It is also ideal for insulating underfloor radiant heating pipes and has grid marking to assist with laying of underfloor pipes. This product will contribute to the air tightness of your building and provides sound insulation & reduces impace noise up to an estimate 22dB.

SFUF provides a thermal break to reduce or eliminate cold bridging when turned up the walls. SFUF contains multiple reflective layers that reflect radiant energy into the room and can be used to meet or improve uValues in both new build and renovation projects.

SuperFOIL SFUF is a multi-layer foil insulation for use with solid and suspended floors. Can also be used to insulate in other areas, including walls and ceilings. Consisting of 13 layers of reflective foil, thermo foam seperation layers and topped with a PE layer. SFUF is the ideal for use with hot water underfloor heating systems as it is a low profile, thin insulation product. SFUF reflects heat back into the room, at the same time improving airtightness and resisting the passage of moisture.

Properties

Length: 12.5m.
Width: 1.5m.
Roll size: 18.75m2.
Thickness: 6mm.
Roll weight: 9kg.

Thermal Resistance - rValues:

Core rValue: 0.8m2K/W.
Layers: 13x layers.
Acoustic performance: up to 22dB.
Colour: silver.

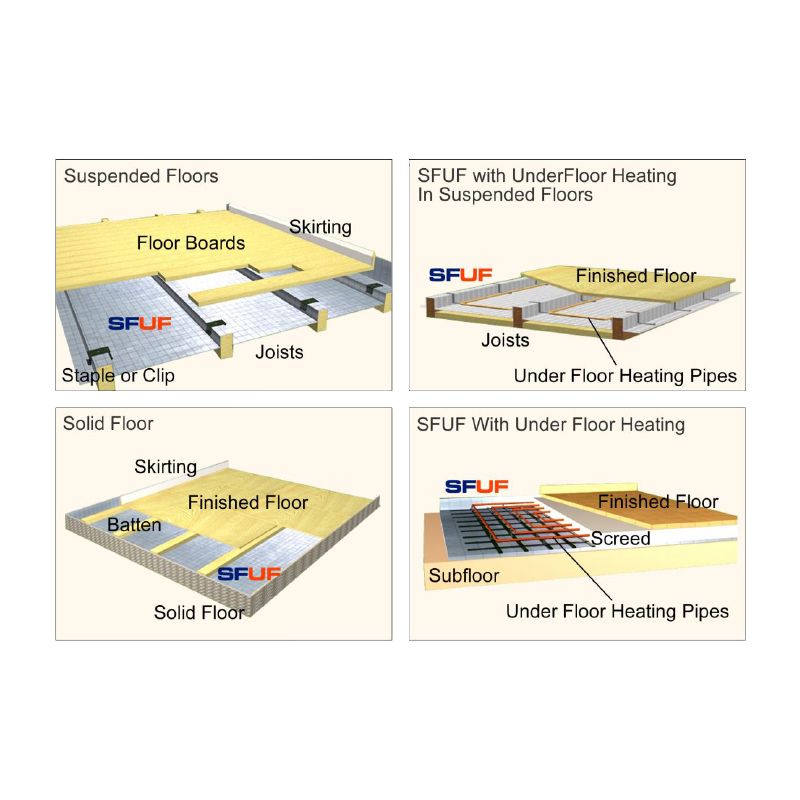

Application

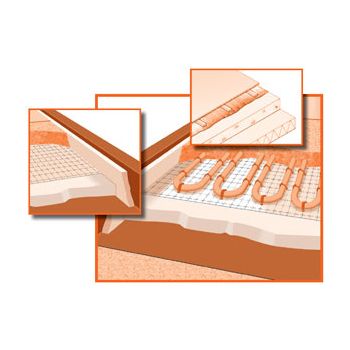

SFUF with wet underfloor heating:

Lay SFUF on a clean, dry and smooth surface. Start at the edge with a minimum of 100mm lapping up the wall. Install your underfloor heating and screeding to the manufacturers recommendations.

SFUF over joists or suspended floors:

Start at the wall edge with a minimum of 100mm lapping up the wall edge. Roll SFUF out over the joists. SFUF can then be staples in place, onto the joists. Where rolls meet, butt the edges together and seal with foil tape. Decking should then be installed over the SFUF in accordance with the manufacturers guidelines.

SFUF under joists on suspended floors:

Rolls SFUF out over the joists. SFUF can then be stapled in place, onto the joists. Where rolls meet, butt the edges together and seal with foil tape. Seal the SFUF around the perimeter or lap it up the wall above the floor deck.
