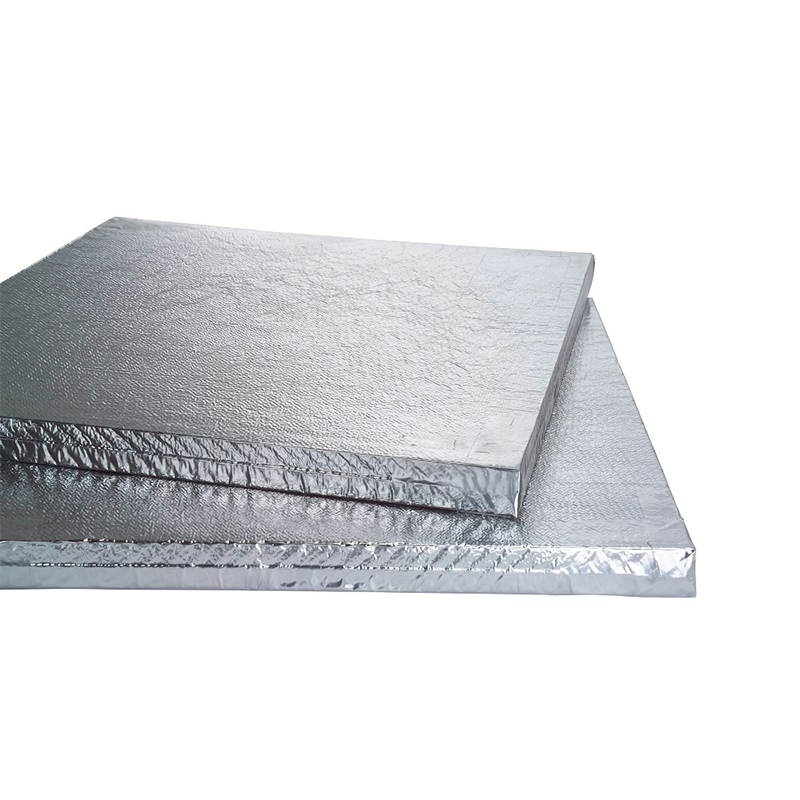

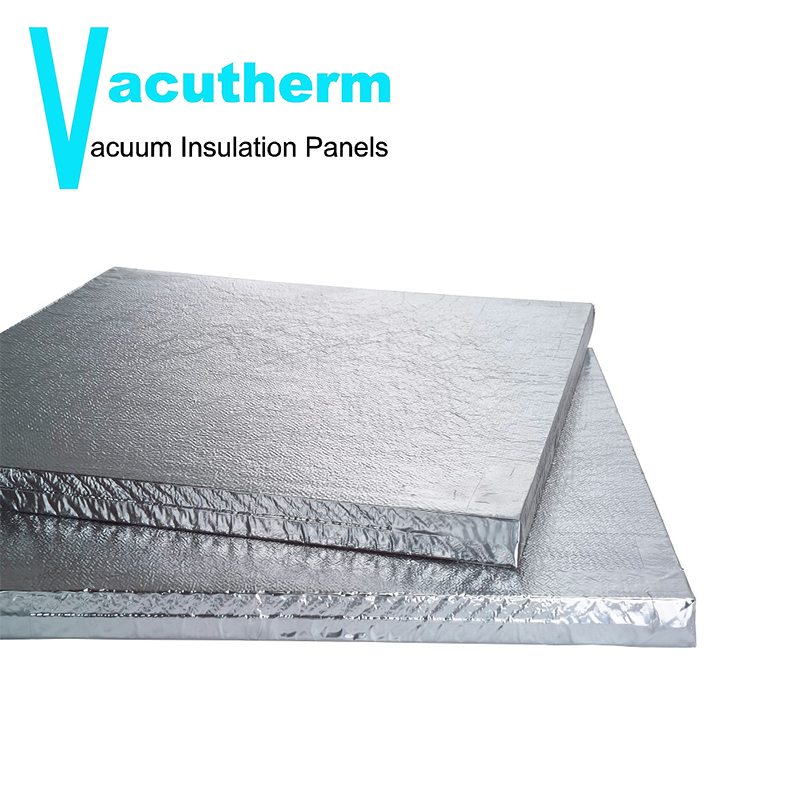

Vacuum insulated panels are a good choice in constructions where you may not have a lot of thickness to install insulation in. Vacutherm Vacupor NT-B2 vacuum insulated panels are a fantastic example of where thin insulation can insulate very well and save space.
These vacuum insulated panels are a fantastic insulator as they have very low internal pressure, they’re low density and they’re made up a microporous material, allowing the insulation to breathe. Thermal conductivity is as low as 0.005 W/mK.
Applications of Vacutherm Vacupor NT-B2 include terrace insulation, flat roof insulation, cold storage floor insulation and façade elements.
Please note: drilling, cutting, milling, nailing or otherwise puncturing vacuum insulated panels will remove all their insulating properties.
Length: 600mm.
Width: 250mm.
Thickness: 20mm.
Panel size: 0.15m2.
Thermal conductivity:
Rated value - 0.008 W/mK. (according to DIBT approval number Z-23.11-1662).
Ambient pressure - 0.0019 W/mK.
1 mbar pressure - 0.005 W/mK.
Density: 170 - 210 kg/m3.
Colour: silver - caused by film.
Balcony insulation.
Floor insulation.
Flat roof insulation.
Cold storage floor insulation.
Internal and external walls.
