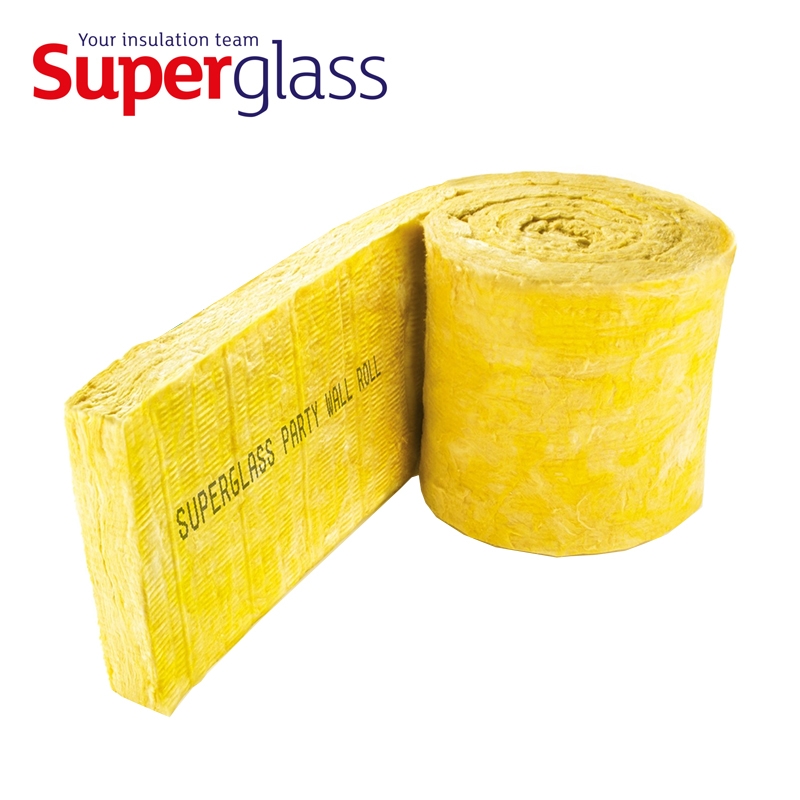

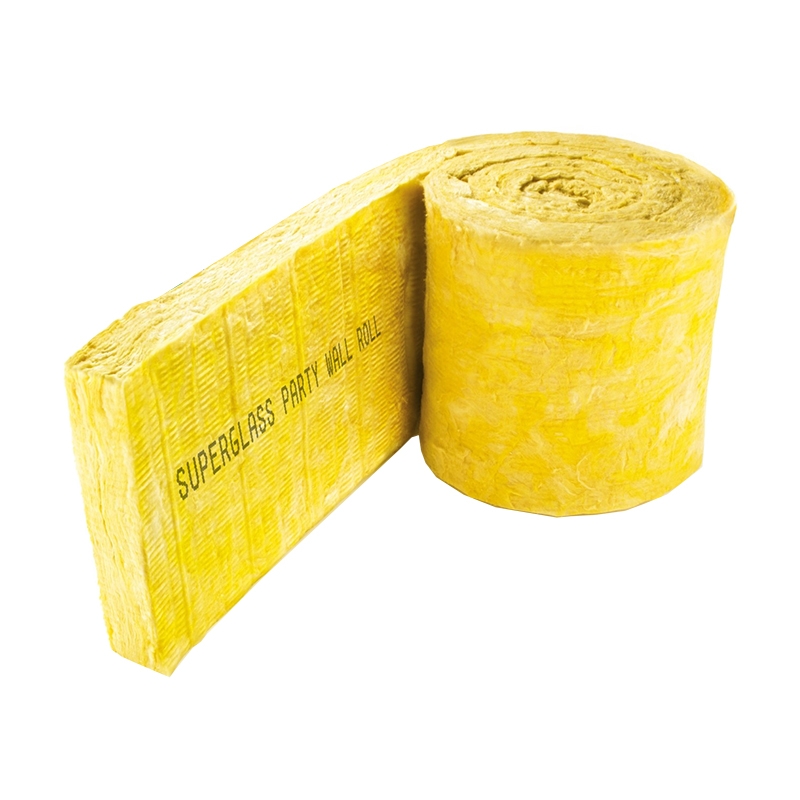

Superglass Party Wall Roll Glass Wool Insulation 75mm - 252.24m2

Code:
17EPW075

This item is out of stock and not available to purchase.

Superglass Party Wall Roll is a lightweight, non-combustible glass mineral wool insulation roll. The flexible roll is cut at 3x455mm widths to fit between standard wall ties spacings and to allow easy installation and minimum on-site cutting and waste. Manufactured at a minimu... Read More

Create a wishlist

"Excellent customer service and gre…"

Emma

Description

Superglass Party Wall Roll is a lightweight, non-combustible glass mineral wool insulation roll. The flexible roll is cut at 3x455mm widths to fit between standard wall ties spacings and to allow easy installation and minimum on-site cutting and waste. Manufactured at a minimum density of 18kg/m³.

Superglass Party Wall Roll is designed to provide thermal and acoustic insulation and help provide a zero u-value within masonry party or separating walls as described within Approved Document L1A (England & Wales) and Technical Handbook Section 6 (Scotland) respectively. Party Wall Roll may be used as a component in a number of Robust Details Solutions including proprietary systems E-WM-22, E-WM-23 & E-WM-27 (England & Wales) and V-WM-27 (Scotland). It may also be used in party wall systems which require on-site pre-completion (England & Wales) or post-completion (Scotland) acoustic testing.

When installed in a masonry party or separating wall in conjunction with effective edge sealing it will negate the effect of thermal bypass associated with such walls whilst not diminishing their acoustic performance.

Properties

Length: 7.70m.
Width: 455mm.
Thickness: 75mm.
Roll coverage: 3.503m2.
Pack quantity: 3x rolls.
Pack coverage: 10.51m2.
Pallet quantity: 24x packs.
Pallet coverage: 252.24m2.
Thermal conductivity: 0.036 W/mK.
Thermal resistance: 2.05m2K/W.
Fire performance: Classified as Euroclass A1 to BS EN 13501-1.

Features

• Thermal Bypass Solution - Can be used as part of a full fill solution to achieve a zero effective U-value.
• Robust Detail Compliant - Suitable for use in number of Robust Detail Solutions including proprietary systems E-WM-22, E-WM-23 & E-WM-27.
• Acoustic Performance - Excellent sound absorption.
• Fire Performance - Classified as non-combustible (Euroclass A1).
• Recycled Content - Manufactured from up to 84% recycled glass bottles.
• Environmental - BRE Green Guide Rating of A+ and zero ODP & GWP.
• Easy-to-fit - Simple installation process between standard wall tie spacings.

Dimensions

Length 7700mm Width 455mm

Details

Thickness 75mm Thermal Conductivity 0.036 W/mK Application Masonry Walls Features Acoustic
Product Type Roll Fire Protection Non-Combustible Fire Performance Euroclass A1 Material Glass Fibre
