Kingspan Thermaroof TR27 Flat Roof Insulation Board 75mm - 4.32m2

Code:
ITR27075
Brand:

This item is out of stock and not available to purchase.

Insulation beneath fully adhered single–ply waterproofing, and partially bonded built-up felt and mastic asphalt. Thermaroof TR27 is a high performance, fibre free, rigid thermoset insulation core faced on both sides with a coated glass tissue facing which ... Read More

Create a wishlist

"Every thing came as orderd and on…"

paul harrison

Description

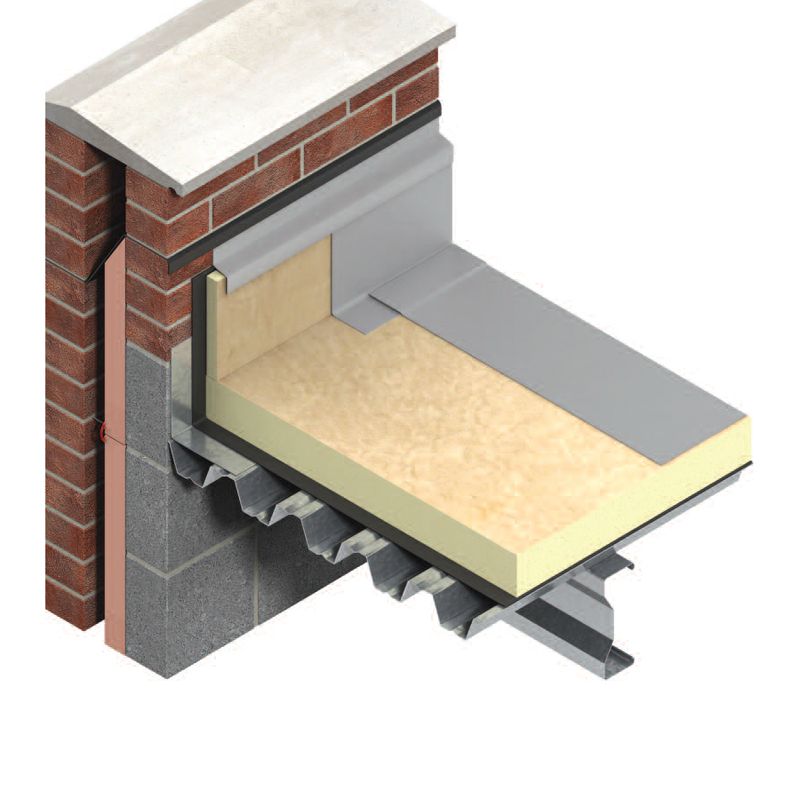

Insulation beneath fully adhered single–ply waterproofing, and partially bonded built-up felt and mastic asphalt.

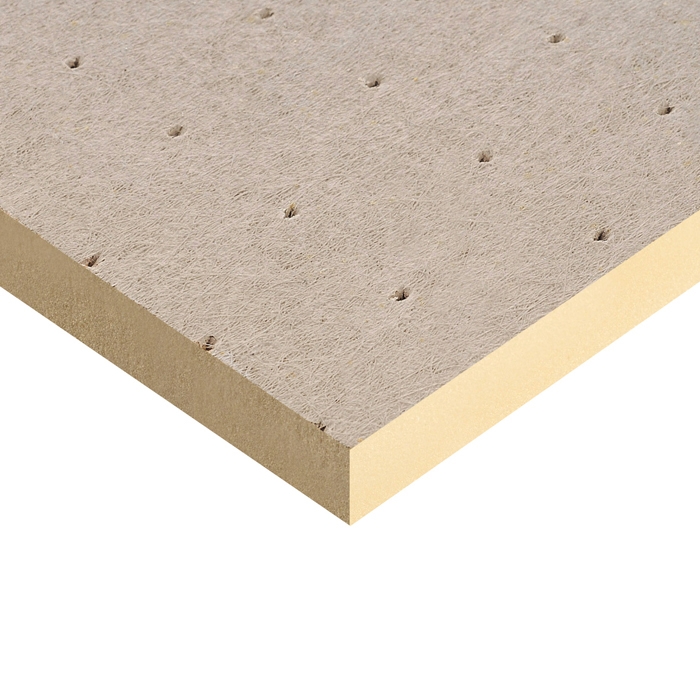

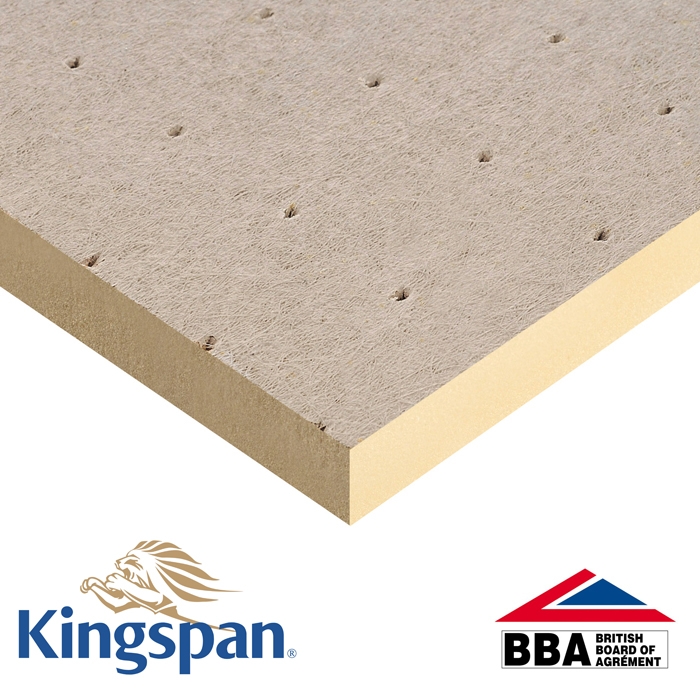

Thermaroof TR27 is a high performance, fibre free, rigid thermoset insulation core faced on both sides with a coated glass tissue facing which is used for insulating flat roofs. Fully compatible with single–ply non–bituminous membranes that are fully bonded with solvent based adhesive systems, most bitumen based and mastic asphalt waterproofing systems and most green roof systems.

Please note: this pack contains 6 x 1200mm x 600mm sheets.

Properties

Length: 1.2m.
Width: 600mm.
Thickness: 75mm.
Pack quantity: 6x sheets.
Pack coverage: 4.32m2.
Thermal conductivity:
80mm to 119mm - 0.025 W/mK.
120mm and above - 0.024 W/mK.
Facings: coated glass tissue.
Compressive strength: 150kPa at 10% compression.

Features

  • High performance rigid thermoset insulation – thermal conductivities as low as 0.024 W/m.K.
  • FM approved for Class 1 steel deck roof assemblies.
  • Fully compatible with single–ply non–bituminous membranes that are fully bonded with solvent based adhesive systems.
  • Fully compatible with most bitumen based and mastic asphalt waterproofing systems.
  • Compatible with most green roof systems.
  • Resistant to the passage of water vapour.
  • Easy to handle and install.
  • Ideal for new build and refurbishment.
  • Non–deleterious material.
  • Manufactured with a blowing agent that has zero ODP and low GWP.

Please Note:

This item is non-returnable due to being Special Order, Made to Measure or for hygiene reasons. Your statutory rights are not affected.

Dimensions

Length 1200mm Width 600mm

Details

Thickness 75mm Thermal Conductivity 0.026 W/mK Edging Square Edge Facing Mineral Glass Coated
Application Flat Roofing Product Type Board Material PIR
