Ufoil insulation is a range of insulation materials which are constructed using polyethylene bubble which has aluminium to either one face or two faces, for use in roof, walls and floor applications. Ufoil insulation works on the principles of reflecting upto 95% radiant heat... Read More
Ufoil insulation is a range of insulation materials which are constructed using polyethylene bubble which has aluminium to either one face or two faces, for use in roof, walls and floor applications.
Ufoil insulation works on the principles of reflecting upto 95% radiant heat. Ufoil thermal performance is unaffected by moisture and condensation.

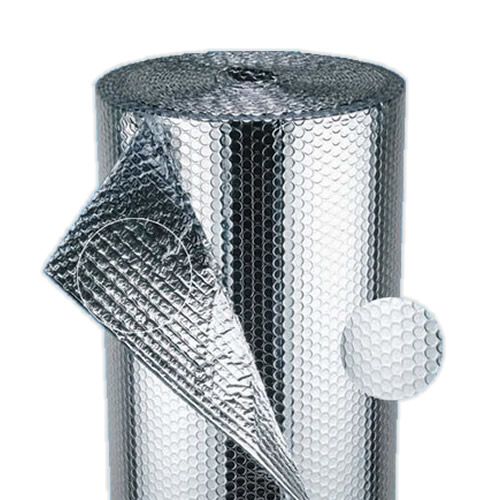

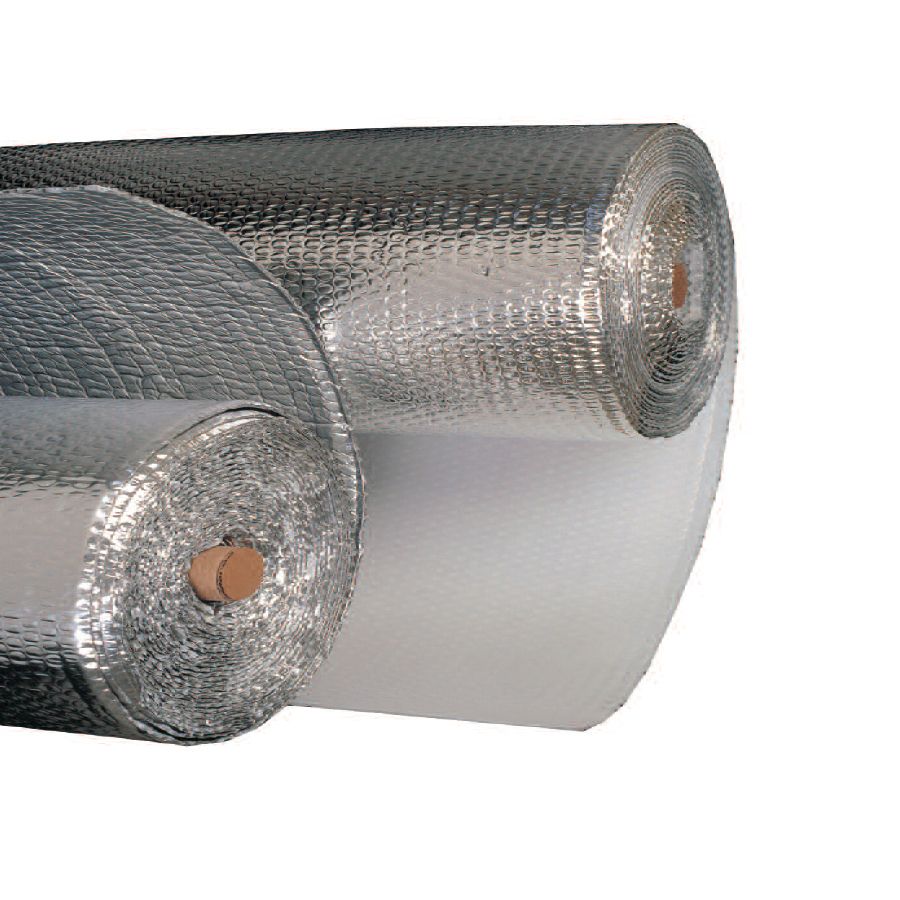

Corrosion resistant coated, low emissivity aluminium foil insulation rolls backed by a multi-layer air bubble film.
Please note: this Ufoil has foil to both sides with one layer of polyethylene bubble.
Properties
Length: 25m.
Width: 1.2m.
Roll size: 30m2.
Thickbness: 4mm.
Thermal resistance: 0.125m2K/W.
With 20mm clear cavity to foil faces: 1.455m2K/W.
Double foil: foil to both sides.
Nominal weight : 263gsm.
Water vapour resistance : >150 MNs/g.
Fire rating: Class 1.
Application
A range of cavity wall ties have been developed for use with bubble/foil insulation. This range consists of two designs with special ends to pierce the insulation material. Plastic retaining clips are also supplied to hold the insulation in place after fixing.

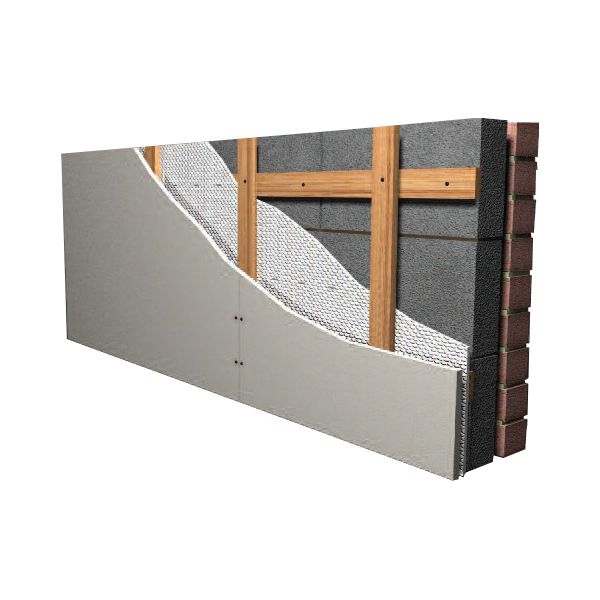

Wall ties enable the insulation to be installed flush to the blockwork. Ties position the insulation 25mm away from the face of the block. A range of ties are available in three different lengths to suit cavities from 60mm to 100mm.
All ties have a safety feature to the ends to reduce the risk of injury during handling and installation. They are manufactured from stainless steel and are corrosion resistant and feature multiple drips to ensure at least one drip is located in the cavity.
Taping & jointing
Horizontal joints are weather lapped but all vertical joints are to be lapped and taped with aluminium adhesive tape.
Additional uses
Ufoil insulation can also be used in many other applications i.e. roofs and floors to boost overall thermal performance.
