EcoTherm Eco-Deck 106mm PIR Insulated Decking Board for Flat Roofs - 34.56m2 Pallet

Code:
100000023015
Brand:
Free UK Delivery

EcoTherm's EcoDeck is a tough, structural, pre insulated thermal roof decking for flat roofs that enables you to deck and insulate in one simple application. Comprising a fibre free polyisocyanurate (PIR) insulation core faced with tough, exterior grade 6mm plywood used as pre-... Read More

Create a wishlist

"very quick and easy to order"

Mrs Michelle Hart

Description

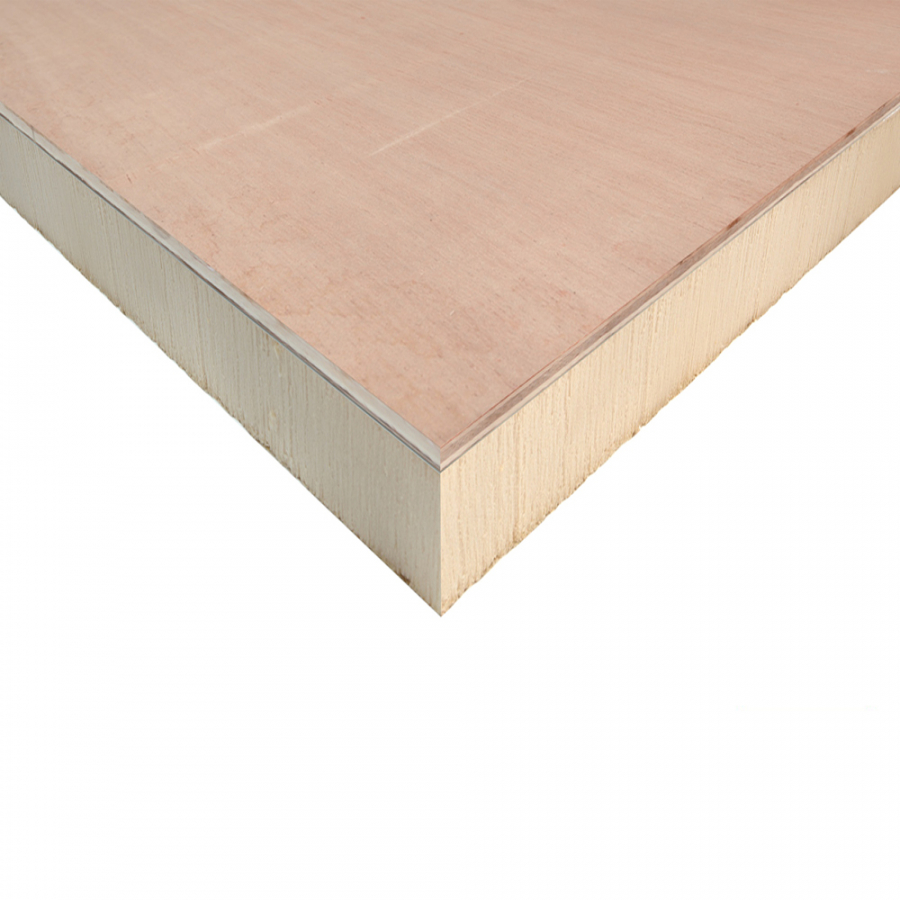

EcoTherm's EcoDeck is a tough, structural, pre insulated thermal roof decking for flat roofs that enables you to deck and insulate in one simple application.

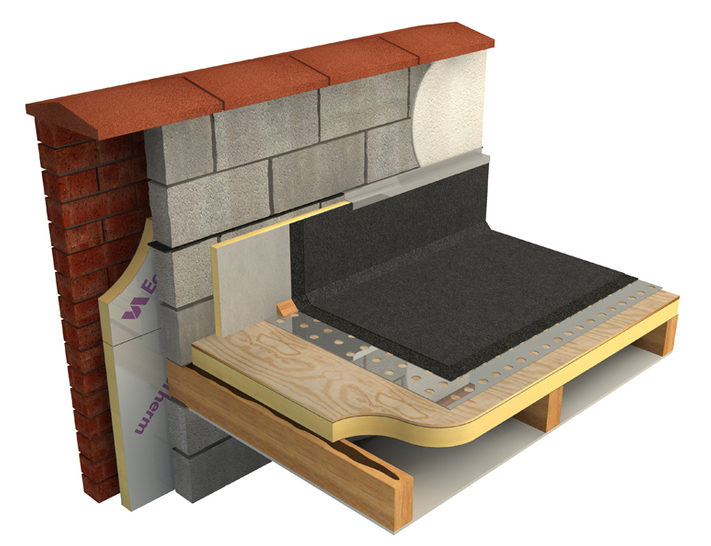

Comprising a fibre free polyisocyanurate (PIR) insulation core faced with tough, exterior grade 6mm plywood used as pre-insulated foil-backed thermal insulating decking for flat roofs. It is ready to fix and finish using basic tools and traditional roofing techniques.

A flat roof should always allow for water channelling and drainage to prevent issues such as ponding. Ponding can lead to premature failures in the waterproofing system and the need to refurbish an area or the entire flat roof before the end of its intended design lifetime. Standing water will promote the growth of plants, moss and algae and, in extreme circumstances, can add to roof loading and an uneven deck. These issues will only contribute to a drainage problem and over time could cause the roof to fail.  Installing tapered insulation also negates the requirement for a structural roof fall, helping to reduce the overall cost of the roof.

Eco-Deck can be used in combination with the following waterproofing systems:

Suitable for use in new build or upgrading the thermal performance of existing roofs, providing a cost effective means of reducing CO2 emissions and compliance with Building Regulations/Standards.

Applications

  • Single ply mechanically fixed
  • Single ply adhered
  • Mastic Asphalt
  • Roll and Pour Felt

Specifications

Width: 1200mm
Length: 2400mm
Thickness: 106mm
Board Coverage: 2.88m2
Pallet Coverage: 34.56m2
Boards per Pallet: 13
Thermal conductivity (λ-value): 0.022W/mK

Dimensions

Length 2400mm Depth 106mm Width 1200mm

Details

Thickness 106mm Thermal Conductivity 0.022 W/mK Edging Square Edge Facing Foil
Application Flat Roofing Product Type Board Material PIR
