EcoTherm Eco-Cavity 90mm Rigid PIR Full Fill Wall Insulation Board - 60.48m2 Pallet

Code:
100000033072
Brand:
Free UK Delivery

EcoTherm Eco-Cavity Full Fill Wall insulation board comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides. The boards are are an engineered jointing system for superior fit and are conveniently sized to co-ordinat... Read More

Create a wishlist

"Great service"

Brett Wescott

Description

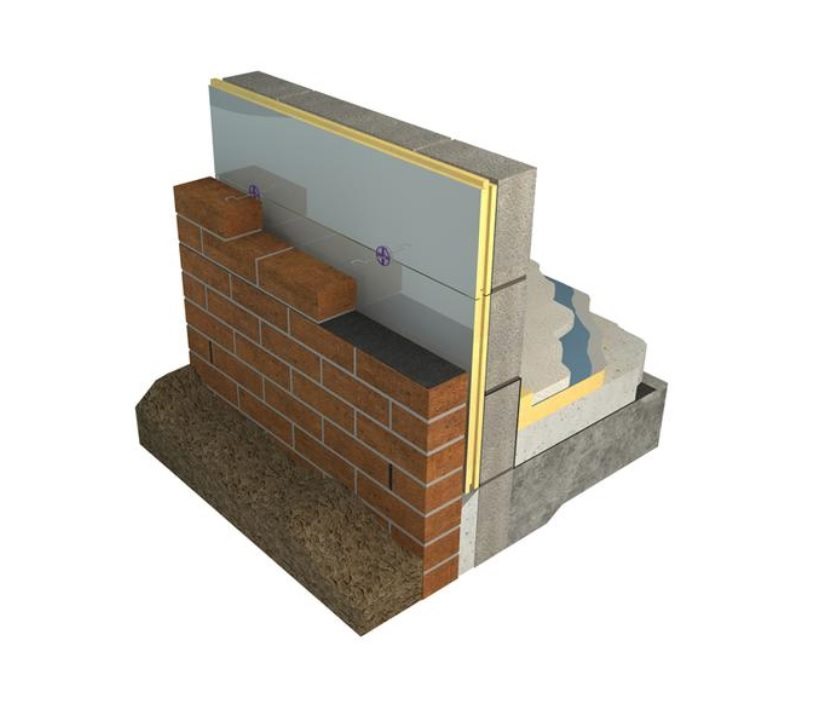

EcoTherm Eco-Cavity Full Fill Wall insulation board comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides. The boards are are an engineered jointing system for superior fit and are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropriate spacing.

Suitable for full fill cavity wall applications, whilst maintaining a residual 10mm cavity helping resist moisture transfer, aids installation and accommodate mortar squeeze. Eco-Cavity also provides a cost effective means of reducing CO2 emissions and compliance with Building Regulations/Standards.

Please note, images are for illustration purposes only.

Specifications

Width: 450mm
Length: 1200mm
Thickness: 90mm
Board Coverage: 0.54m2
Pallet Coverage: 60.84m2
Boards per Pallet: 112
Thermal conductivity (λ-value): 0.022W/mK

Dimensions

Length 1200mm Depth 90mm Width 450mm

Details

Thickness 90mm Thermal Conductivity 0.022 W/mK Edging Square Edge Facing Foil
Product Type Board Material PIR

Questions & Answers

Question:

Hi what wall ties/insulation retension is recommended to maintain the 10mm cavity? thanks

Answer:

Hello Colin, please call our team on 01752 692206
