EcoTherm Eco-Cavity 100mm Rigid PIR Partial Fill Wall Insulation Board - 54m2 Pallet

Code:
100000018966
Brand:
Free UK Delivery

EcoTherm Eco-Cavity comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides.  The boards are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropr... Read More

Create a wishlist

"Proper customer focused company."

Mr JOHN POVEY

Description

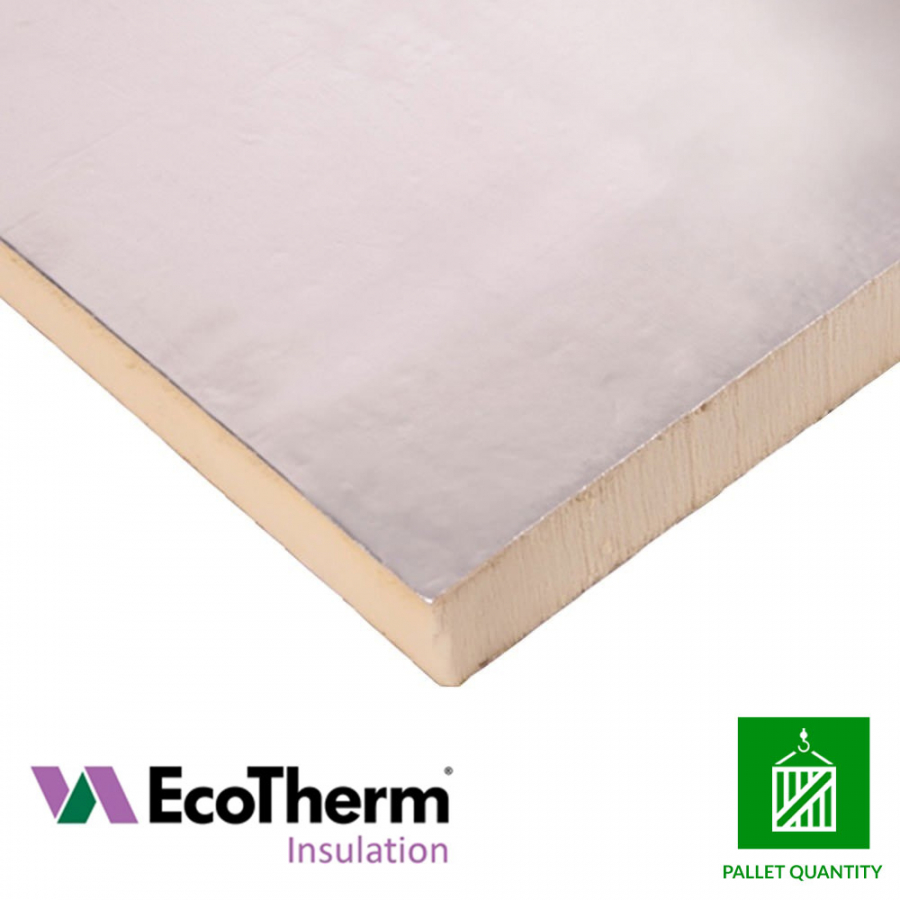

EcoTherm Eco-Cavity comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with aluminium foil composite on both sides.  The boards are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropriate spacing.

Eco-Cavity insulation boards are suitable for partial fill cavity wall insulation. They achieve high levels of thermal performance for thinner constructions whilst maintaining a clear residual air gap and offers effective protection against driving rain, particularly in coastal and exposed locations.

Suitable for use in new build walls, Eco-Cavity provides a cost effective means of reducing CO2 emissions and compliance with Building Regulations/Standards.

When the product is used in situations where it bridges the dpc in walls, dampness from the ground will not pass through to the inner leaf provided the cavity wall is detailed in accordance with Building Regulations/Standards.

Specifications

Width: 450mm
Length: 1200mm
Thickness: 100mm
Board Coverage: 0.54m2
Pallet Coverage: 54m2
Boards per Pallet: 100
Thermal conductivity (λ-value): 0.022W/mK
Weight per board: 1.9kg

Dimensions

Length 1200mm Depth 100mm Width 450mm

Details

Thickness 100mm Application Walls Material PIR Range Eco-Cavity
Board Size 450mm x 1200mm
