Insulated Plasterboard from Celotex PL4055 - 2.4m x 1.2m x 67.5mm

Name: Insulated Plasterboard from Celotex PL4055 - 2.4m x 1.2m x 67.5mm
Brand: Celotex
SKU: 629244
Availability: LimitedAvailability

Code:

629244

Brand:

Celotex

This item is out of stock and not available to purchase.

View alternative products

Celotex PL4000 is a high performance thermal insulation board where the PIR insulation is bonded to tapered edge plasterboard. Supported by BBA certification and Ofgem approval, this high performance insulated plasterboard allows for the installation of both the insulation an... Read More

View full product details

View questions about this product

Create a wishlist

T Pendleton

Description

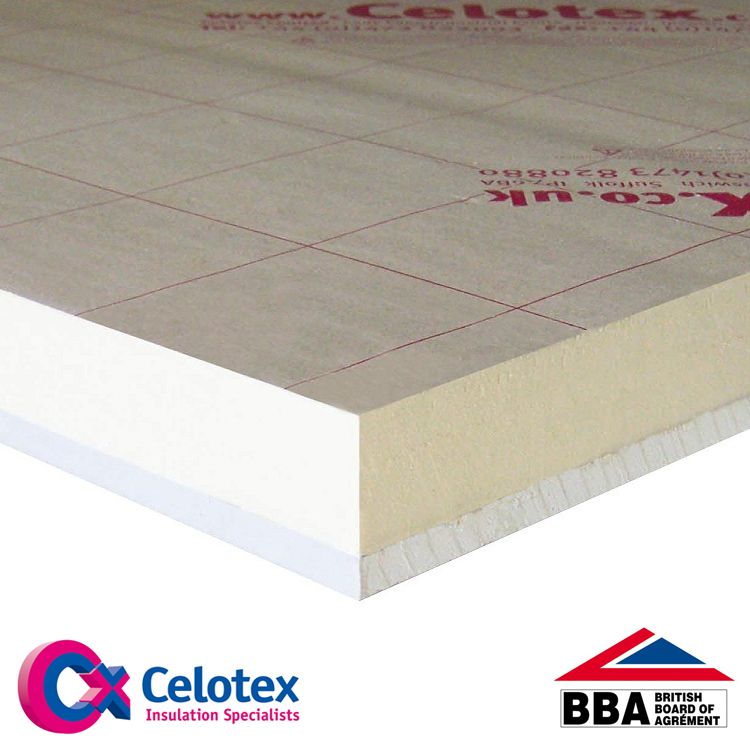

Celotex PL4000 is a high performance thermal insulation board where the PIR insulation is bonded to tapered edge plasterboard.

Supported by BBA certification and Ofgem approval, this high performance insulated plasterboard allows for the installation of both the insulation and plasterboard in one operation, thereby reducing installation time and labour costs.

PL4000 is manufactured from rigid polyisocyanurate (PIR) using a blowing agent that has zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Properties

Length: 2.4m.
Width: 1.2m.
Thickness: 55mm insulation.
Plasterboard: 12.5mm thickness.
Toal thickness: 67.5mm.
Thermal conductivity: 0.022 W/mK - BS EN 12667.
Fire resistance: Euroclass B-s1,d0 - BS EN 13501-1.
Compressive strength: ≥120kPa - BS EN 826.
rValue: 2.55 m2K/W.
Weight: 10.01 kg per m2.

Applications

Celotex PL4000 is purpose designed for providing thermal insulation and plasterboard as one product. PL4000 can be specified for use in a variety of applications including:

The 'underneath' layer of insulation in between and under rafter and joist applications.

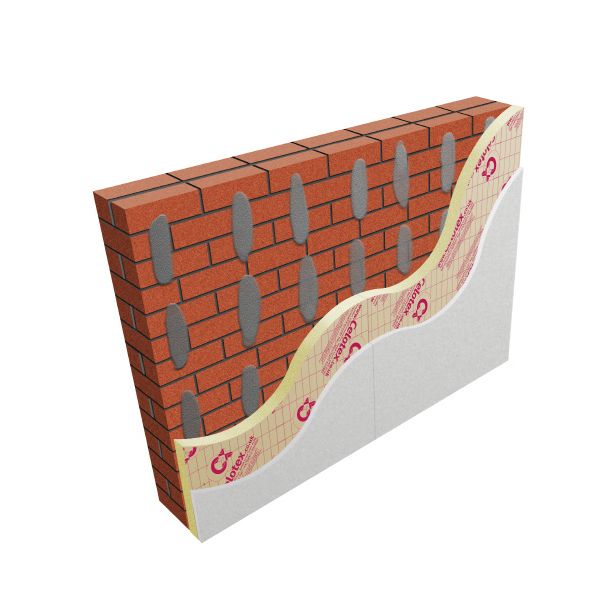

Solid masonry walls.
Timber frame lining applications.

With Celotex PL4000 you are specifying an insulation board that:

Offers the user the ability to install both the insulation and plasterboard in one operation, thus reducing installation times.
Is suitable for both direct bonding ('dot and dab') and mechanically fixed installation techniques.
Offers the installer maximum flexibility and installation speed due to the tapered edge plasterboard.
Provides reliable long-term energy savings for buildings.
Is suitable for both new build and refurbishment projects.
Can be easily used to upgrade to current building regulation standards.
Can be used in pitched roof, flat roof and wall applications
